Centrifugal Monoblock Pumps

Our Centrifugal Monoblock Pumpsets are powered by a totally enclosed fan cooled AC Induction two pole motor. Motor stator is made of low watt silicon steel laminations assembled under pressure and the rigidly locked in the frame. The windings are of high - grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality material results in High performance and Low temperature rise thereby increasing the life of the motor.

SALIENT FEATURES:

High operating efficiency resulting in lower power consumption.
Dynamically balanced rotor for longer trouble free life of the pump.
Double shielded ball bearing So, external lubrication is not required.
Good suction lift characteristics.

MOTOR:

Suitable for 200-240V, 50HZ power supply.
Permanent split capacitor design for better reliability.
Double shielded ball bearings.

PUMP:

Rigid cast iron pump casing.
Graded Cast Iron Impeller.
Corrosion resistant stainless steel shaft.
High quality carbon vs ceramic mechanical seal.

APPLICATIONS:

Domestic.
Agriculture.
Irrigation.
Farms.
Industry.

Material of Construction
Part Name.	Material.
Rear Coner.	Cast iron.
Bracket.	Cast iron.
Shaft.	SS.
Pump Casing.	Cast iron.
Mechanical Seal.	Carbon and Ceramic.

DESCRIPTION:

MODEL NO - VMB 01

MODEL NAME - 0.5HP MONOBLOCK

Available in extended shaft also

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB 01	0.5HP MONOBLOCK	0.5HP	(mm)	2	3	4	6	8	10
VMB 01	0.5HP MONOBLOCK	0.5HP	40 x 40	14572	13386	12196	8120	6356	4068

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB 02	0.5HP MONOBLOCK	0.5HP	(mm)	2	3	4	6	8	10
VMB 02	0.5HP MONOBLOCK	0.5HP	50 x 50	20052	18600	16344	12366	9936	381

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB 03	HIGH HEAD	0.5HP	(mm)	3	4	6	8	10	12
VMB 03	HIGH HEAD	0.5HP	25 x 25	5464	4456	2836	1217	926	640

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB-04	LOW HEAD	0.5HP	(mm)	3	4	6	8
VMB-04	LOW HEAD	0.5HP	25 x 25	5612	4621	3016	1513

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 100	1HP MONOBLOCK	1.0HP	(mm)	2	3	4	6	8	10	12	14
VMB - 100	1HP MONOBLOCK	1.0HP	32 x 25	8820	8532	8316	7596	6876	5914	5456	5366

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB-101	1HP MONOBLOCK SUPER	1HP	(mm)	4	6	8	10	12	14
VMB-101	1HP MONOBLOCK SUPER	1HP	40 x 40	17840	14500	10510	6550	4700	295

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 102	REGULAR	1.0HP	(mm)	4	6	8	10	12	14
VMB - 102	REGULAR	1.0HP	40 x 40	18650	15640	11521	7310	5830	3590

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 103	SUPER	1.0HP	(mm)	2	4	6	8	10
VMB - 103	SUPER	1.0HP	50 x 50	23540	19475	14650	9750	2770

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 104	REGULAR	1.0HP	(mm)	2	4	6	8	10
VMB - 104	REGULAR	1.0HP	50 x 50	23643	19578	15313	10107	3127

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB-201	1.5HP MONOBLOCK	1.5HP	(mm)	3	4	6	8	10	12	14
VMB-201	1.5HP MONOBLOCK	1.5HP	50 x 50	25416	24319	20628	16886	12636	11196	8986

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB 301	2HP MONOBLOCK HEAVY DUTY	2HP	(mm)	3	4	5	6	8	10	12	14	16
VMB 301	2HP MONOBLOCK HEAVY DUTY	2HP	50 x 50	27216	25751	24754	23292	18612	14976	10260	9252	3996

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 302	HEAVY DUTY	2HP	(mm)	6	8	10	12	14	16	18
VMB - 302	HEAVY DUTY	2HP	50 x 40	22570	19760	17280	14290	10440	6440	4820

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)

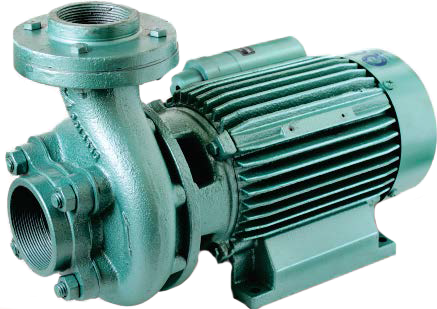

VMB - 303	HEAVY DUTY	2HP	(mm)	3	4	5	6	8	10	12	14	16
VMB - 303	HEAVY DUTY	2HP	65 x 50	27216	25751	24754	23292	18612	14976	10260	9252	3996

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 202	1.5HP MONOBLOCK	1.5HP	(mm)	3	4	6	8	10	12	14
VMB - 202	1.5HP MONOBLOCK	1.5HP	65 x 50	25416	24319	20628	16886	12636	11196	8986

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)

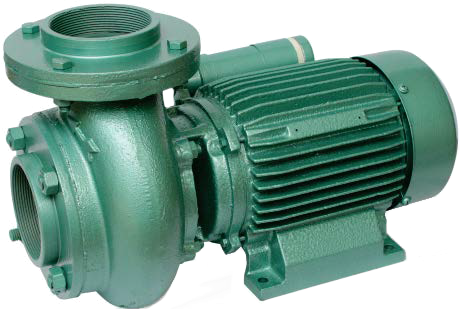

VMB - 203	1.5HP MONOBLOCK	1.5HP	(mm)	3	4	5	6
VMB - 203	1.5HP MONOBLOCK	1.5HP	75 x 75	37260	32508	28188	22500

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 304	REGULAR	2HP	(mm)	6	8	10	12	14	15
VMB - 304	REGULAR	2HP	75 x 65	40680	36610	32975	25880	21600	15510

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 305	REGULAR	2HP	(mm)	6	8	10	12	14	15
VMB - 305	REGULAR	2HP	75 x 75	40680	36610	32975	25880	21600	15510

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 306	EXTRA HEAVY	2HP	(mm)	4	6	8	10	12
VMB - 306	EXTRA HEAVY	2HP	65 x 50	28330	27000	24950	21850	14900

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 401	EXTRA HEAVY	3HP	(mm)	4	6	8	10	12
VMB - 401	EXTRA HEAVY	3HP	65 x 50	28330	27000	24950	21850	14900

MODEL NO	MODEL NAME	POWER RATING	PIPE SIZE	TOTAL HEAD IN METERS (LPH)
VMB - 402	REGULAR	3HP	(mm)	6	8	10	12	14	15
VMB - 402	REGULAR	3HP	75 x 65	40680	36610	32975	25800	21600	15510

Centrifugal Monoblock Pumps

SALIENT FEATURES:

MOTOR:

PUMP:

APPLICATIONS:

DESCRIPTION:

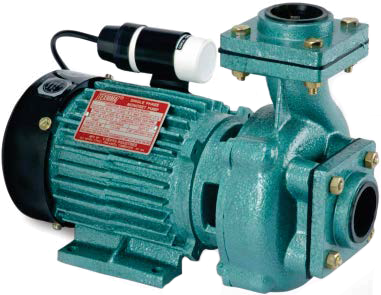

MODEL NO - VMB 01

MODEL NAME - 0.5HP MONOBLOCK

DESCRIPTION:

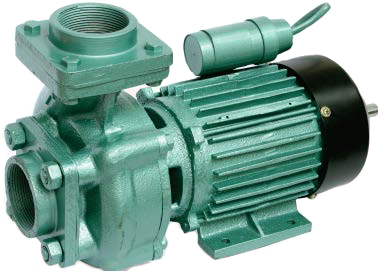

MODEL NO - VMB 02

MODEL NAME - 0.5HP MONOBLOCK

DESCRIPTION:

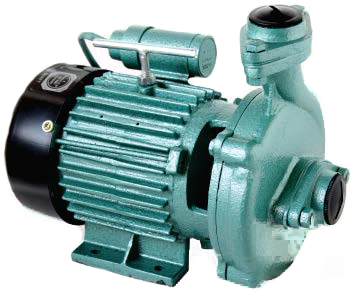

MODEL NO - VMB 03

MODEL NAME - 0.5HP MONOBLOCK HIGH HEAD

DESCRIPTION:

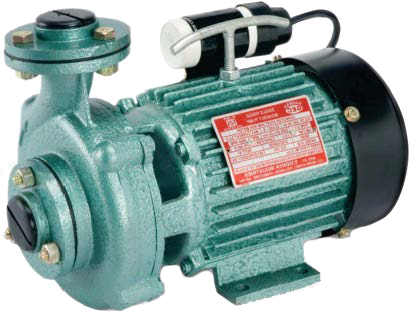

MODEL NO - VMB 04

MODEL NAME - 0.5HP MONOBLOCK LOW HEAD

DESCRIPTION:

MODEL NO - VMB 100

MODEL NAME - 1HP MONOBLOCK

DESCRIPTION:

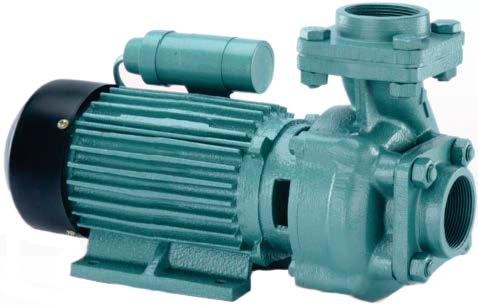

MODEL NO - VMB 101

MODEL NAME - 1HP MONOBLOCK SUPER

DESCRIPTION:

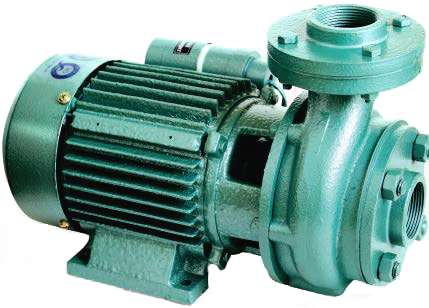

MODEL NO - VMB 102

MODEL NAME - 1.0HP MONOBLOCK REGULAR

DESCRIPTION:

MODEL NO - VMB 103

MODEL NAME - 1.0HP MONOBLOCK SUPER

DESCRIPTION:

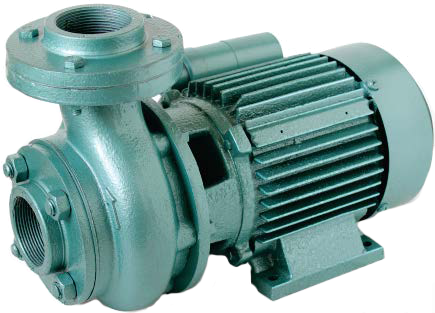

MODEL NO - VMB 104

MODEL NAME - 1.0HP MONOBLOCK REGULAR

DESCRIPTION:

MODEL NO - VMB 201

MODEL NAME - 1.5HP MONOBLOCK

DESCRIPTION:

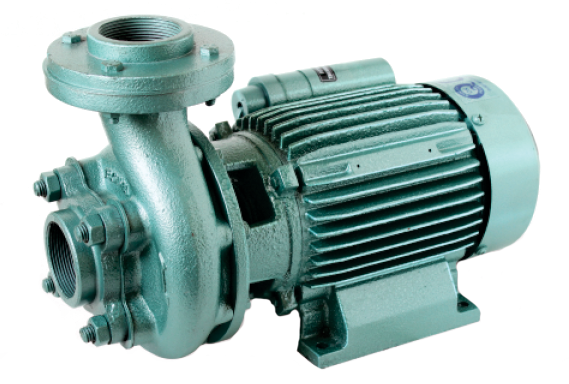

MODEL NO - VMB 202

MODEL NAME - 1.5HP MONOBLOCK

DESCRIPTION:

MODEL NO - VMB 203

MODEL NAME - 1.5HP MONOBLOCK

DESCRIPTION:

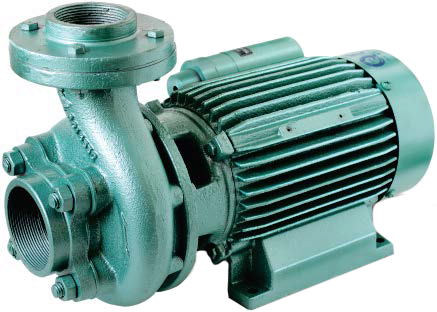

MODEL NO - VMB 301

MODEL NAME - 2HP MONOBLOCK HEAVY DUTY

DESCRIPTION:

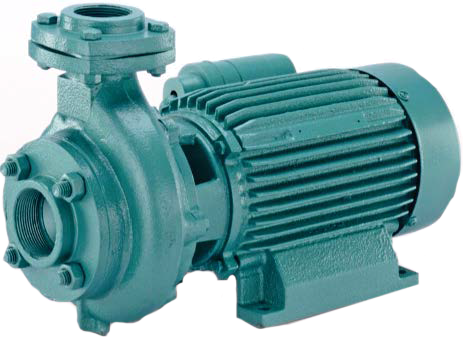

MODEL NO - VMB 302

MODEL NAME - 2HP MONOBLOCK HWAVY DUTY

DESCRIPTION:

MODEL NO - VMB 303

MODEL NAME - 2HP MONBLOCK HEAVY DUTY

DESCRIPTION:

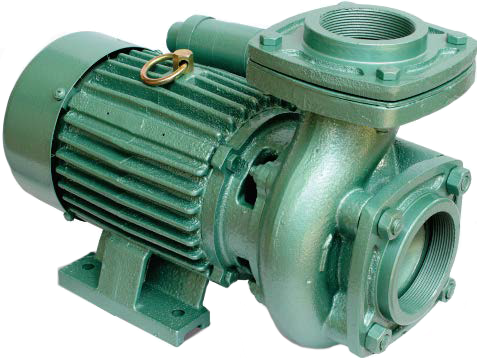

MODEL NO - VMB 304

MODEL NAME - 2HP MONOBLOCK REGULAR

DESCRIPTION:

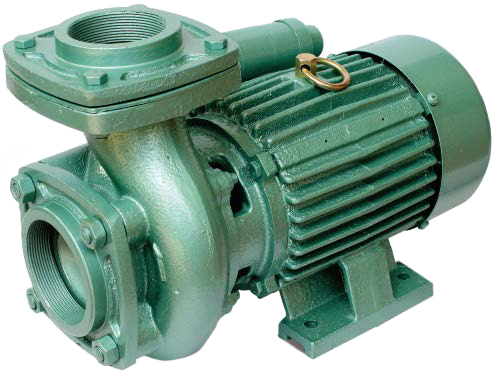

MODEL NO - VMB 305

MODEL NAME - 2HP MONOBLOCK REGULAR

DESCRIPTION:

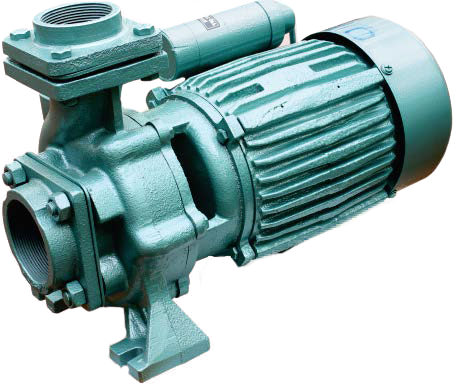

MODEL NO - VMB 306

MODEL NAME - 2HP MONOBLOCK EXTRA HEAVY

DESCRIPTION:

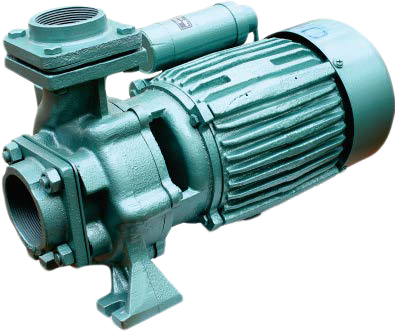

MODEL NO - VMB 401

MODEL NAME - 3HP MONOBLOCK EXTRA HEAVY

DESCRIPTION:

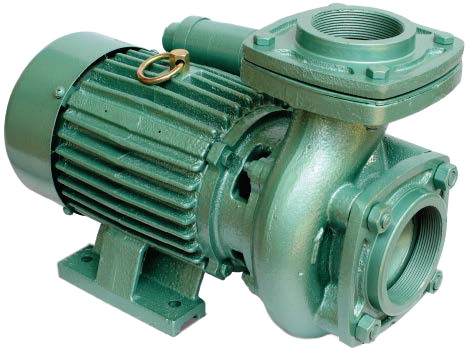

MODEL NO - VMB 402

MODEL NAME - 3HP MONOBLOCK REGULAR

DESCRIPTION:

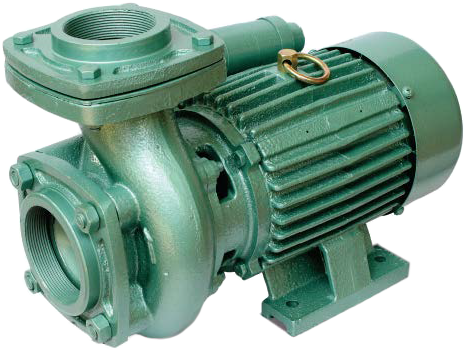

MODEL NO - VMB 403
