Self Priming Pumps
SALIENT FEATURES:
Portable and light weight.
Easy to install and need simple maintenance.
Aesthetic look with powder coated finish.
MOTOR:
Suitable for 200-240V, 50HZ power supply.
In built thermal overload protector (T.O.P).
Permanent split capacitor design for better reliability.
Double shielded ball bearings.
APPLICATIONS:
Domestic water supply.
Lawn and water gardening.
Domestic pressure boosting.
Water transfer from underground sump to overhead tanks in residential houses and apartments.
PUMP:
Rigid cast iron pump casing.
Forged brass impeller.
Corrosion resistant stainless steel shaft.
High quality carbon vs ceramic mechanical seal.
Inbuilt Non return valve (NRV).
DESCRIPTION:

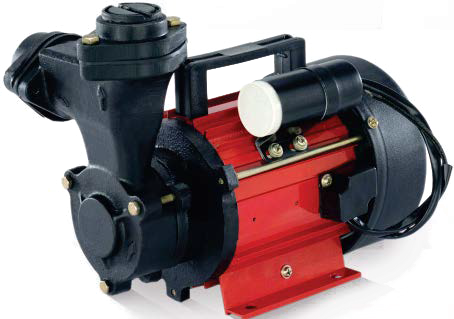

MODEL NO - VSP 01
MODEL NAME - SHINE
Available in AL.Body and CI.Body
Various other Aluminium body colours are also available
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 01
SHINE
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
1980
1686
1394
892
663
412
DESCRIPTION:

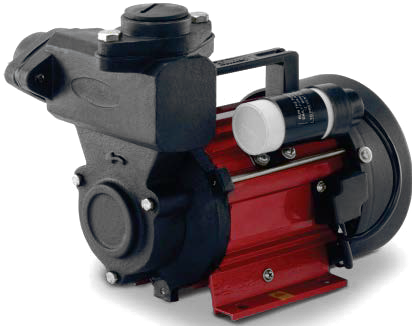

MODEL NO - VSP 03
MODEL NAME - SUPER POWER
Available in AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 03
SUPER POWER
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
2028
1729
1443
994
697
540
DESCRIPTION:

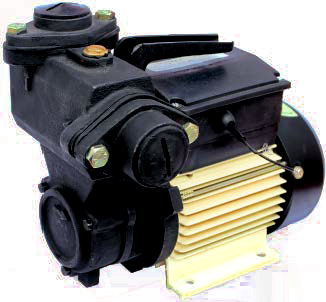

MODEL NO - VSP 05
MODEL NAME - CHIKU H4
Available in AL.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 05
CHIKU H4
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25 x 25
2170
1990
1455
1089
842
DESCRIPTION:

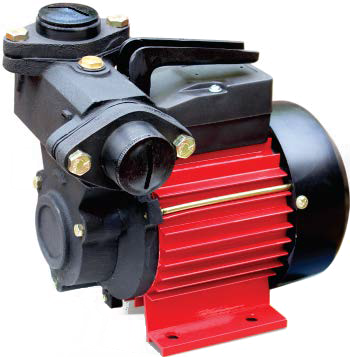

MODEL NO - VSP 06
MODEL NAME - NEW SUPER
Available in AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 06
NEW SUPER
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
2170
1795
1457
942
691
552
DESCRIPTION:

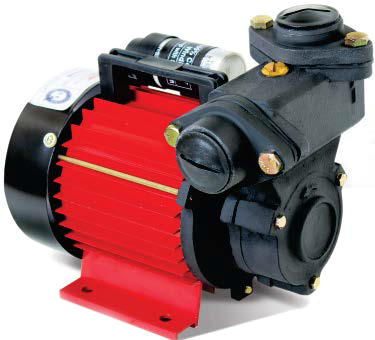

MODEL NO - VSP 08
MODEL NAME - EXTRA HEAVY
Available in AL.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 08
EXTRA HEAVY
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
2356
1819
1452
1096
846
612
DESCRIPTION:

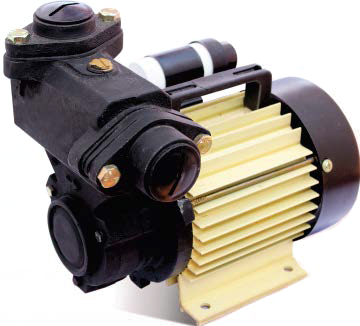

MODEL NO - VSP 09
MODEL NAME - BIG FLOW
Available in AL.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 09
BIG FLOW
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
2540
2448
2232
1996
1629
1389
DESCRIPTION:
MODEL NO - VSP 10
MODEL NAME - VTYPE CRT
Available in CI.Body
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP 10
VTYPE CRT
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
2546
2349
2208
1946
1472
986
DESCRIPTION:

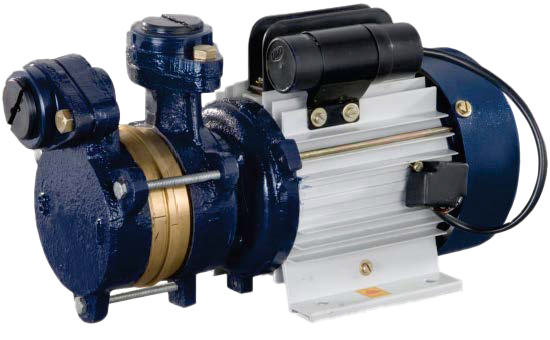

MODEL NO - VMS 11
MODEL NAME - MAGIC SUCTION
Available in AL.Body
Various other Aluminium body colours are also available
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VMS 11
MAGIC SUCTION
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25
25 x 25
2352
2216
1924
1831
1472
1107
DESCRIPTION:
MODEL NO - VSP 001
MODEL NAME - SUPER POWER
Available in AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-001
SUPER POWER
1.0HP / 0.75KW
(mm)
0
5
10
15
20
25
25 x 25
2258
2162
2089
1786
1513
1324
DESCRIPTION:

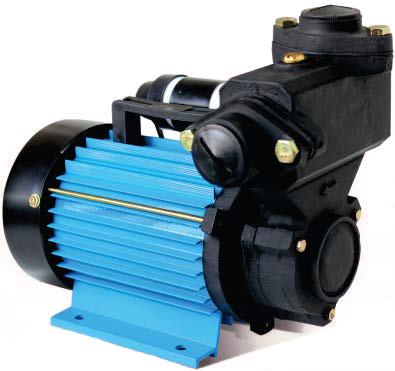

MODEL NO - VSP 003
MODEL NAME - BIG FLOW
Available in AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-003
BIG FLOW
1.0HP / 0.75KW
(mm)
0
5
10
15
20
25
25 x 25
2540
2448
2232
1996
1629
1387
DESCRIPTION:

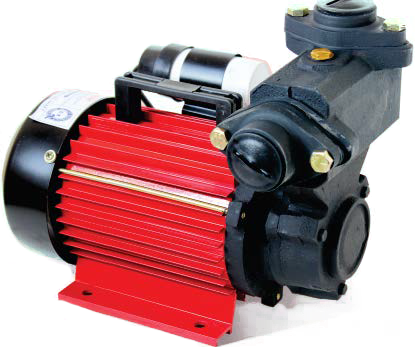

MODEL NO - VSP 004
MODEL NAME - SUPER
Available in both AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-004
SUPER
1.0HP / 0.75KW
(mm)
0
5
10
15
20
25
25 x 25
2288
2182
2034
1841
1642
1468
DESCRIPTION:

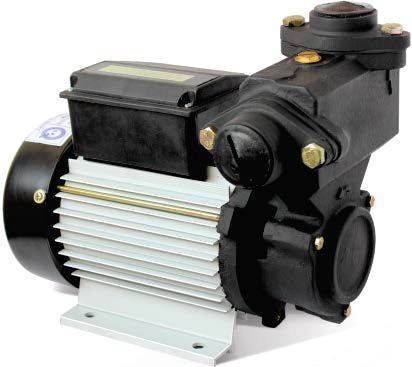

MODEL NO - VSP 006
MODEL NAME - NEW MIKU
Available in both AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-006
NEW MIKU
1.0HP / 0.75KW
(mm)
0
5
10
15
20
25
25 x 25
2890
2752
2641
2546
2349
2247
DESCRIPTION:

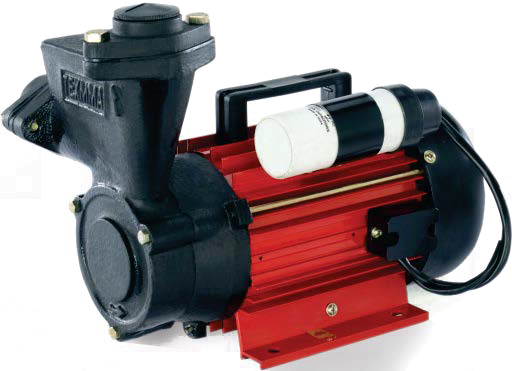

MODEL NO - VSP 008
MODEL NAME - MIKU
Available in both AL.Body and CI.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-008
MIKU
1.0HP / 0.75KW
(mm)
0
5
10
15
20
25
25 x 25
3450
3100
3000
2954
2721
2636
DESCRIPTION:

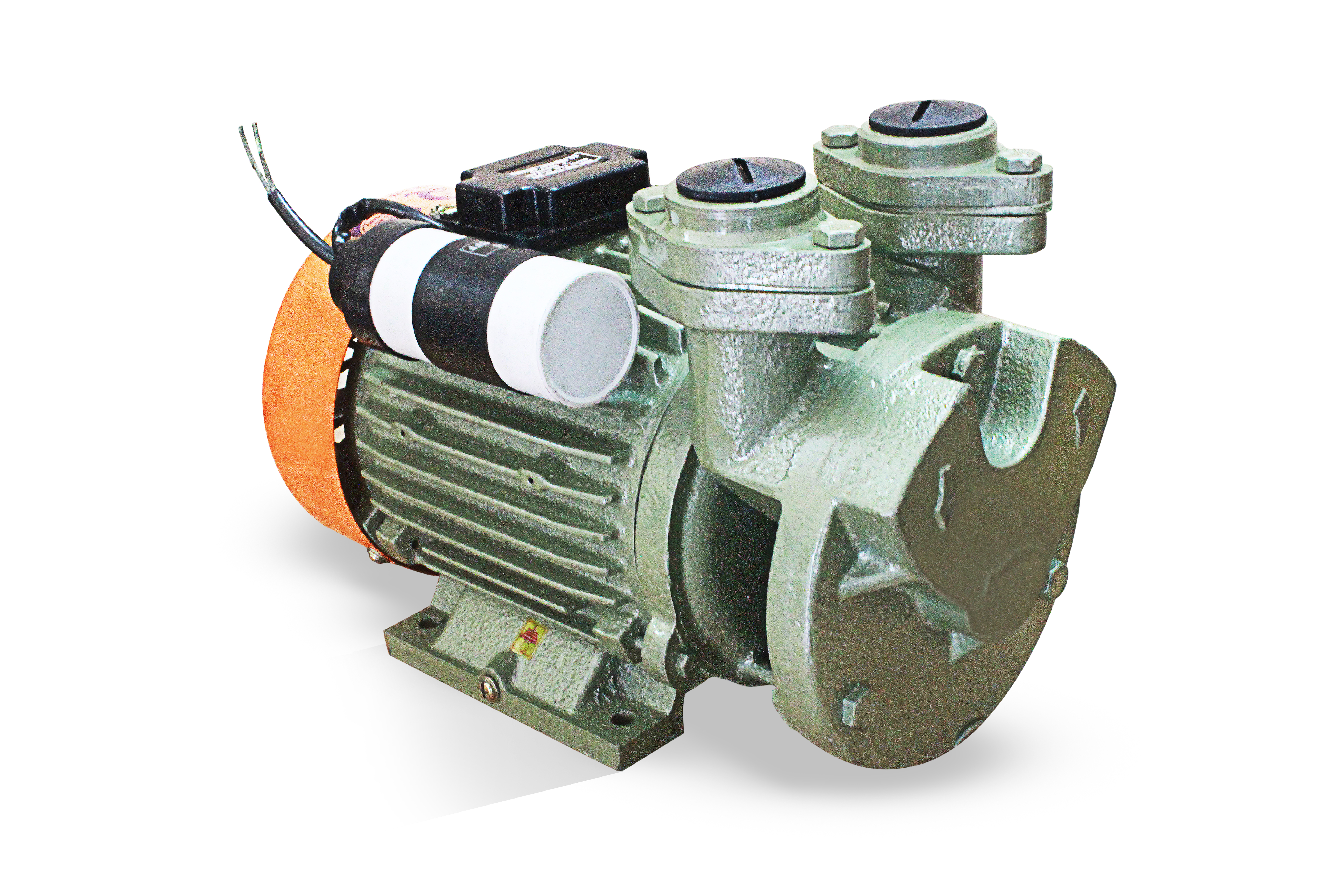

MODEL NO - VSP 009
MODEL NAME - 1HP VTYPE
Available in CI.Body
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-009
VTYPE
1.0HP / 0.75KW
(mm)
2
10
15
20
25
30
35
40
25 x 25
3300
2850
2480
2150
1800
1450
1140
540
DESCRIPTION:

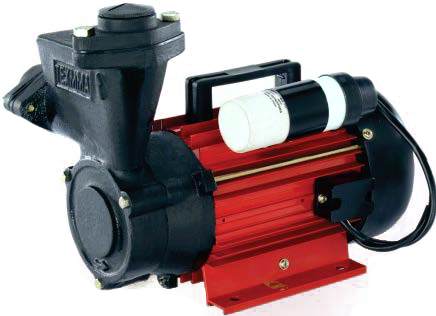

MODEL NO - VSP 010
MODEL NAME - 1.5 HP SUPER
Available in other AL.Body colors
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSP-010
SUPER
1.5HP / 1.1KW
(mm)
0
5
10
15
20
25
25 x 25
3450
3100
3000
2954
2721
2636
DESCRIPTION:
MODEL NO - VSW 01
MODEL NAME - SHALLOW WELL
Available in AL.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSW-01
SHALLOW WELL
0.5HP / 0.37KW
(mm)
0
5
10
15
20
25 x 25
2106
2162
2102
2062
1811
DESCRIPTION:

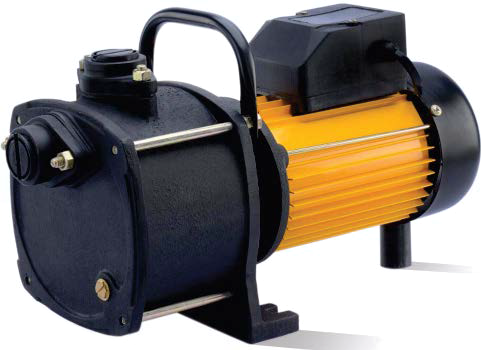

MODEL NO - VSW 1
MODEL NAME - SHALLOW WELL
Available in AL.Body
Various other Aluminium body colours are also available
Respective brand image will be embossed in the casing
Performance Chart
MODEL NO
MODEL NAME
POWER RATING
PIPE SIZE
TOTAL HEAD IN METERS (LPH)
VSW-1
SHALLOW WELL
1HP / 0.75KW
(mm)
0
5
10
15
20
25 x 25
2274
2232
2162
2091
2064
DESCRIPTION:

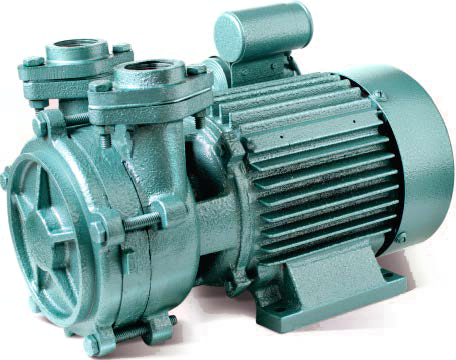

MODEL NO - VDM 2
MODEL NAME - DMS 2 (0.5HP)
Our single phase Self priming pumps are side channel centripetal pumps. They are convenient, Rugged and Reliable pumps for the household.
Performance Chart
Power range
0.5HP
Voltage range
200V - 240V, 50HZ, AC Single phase
Speed
2900 rpm
Motor type
High torque capacitor run
Motor Head
Maximum 30 M
Discharge
Maximum 47 LPM
Operating Pressure
Maximum 15 bar
